Overview

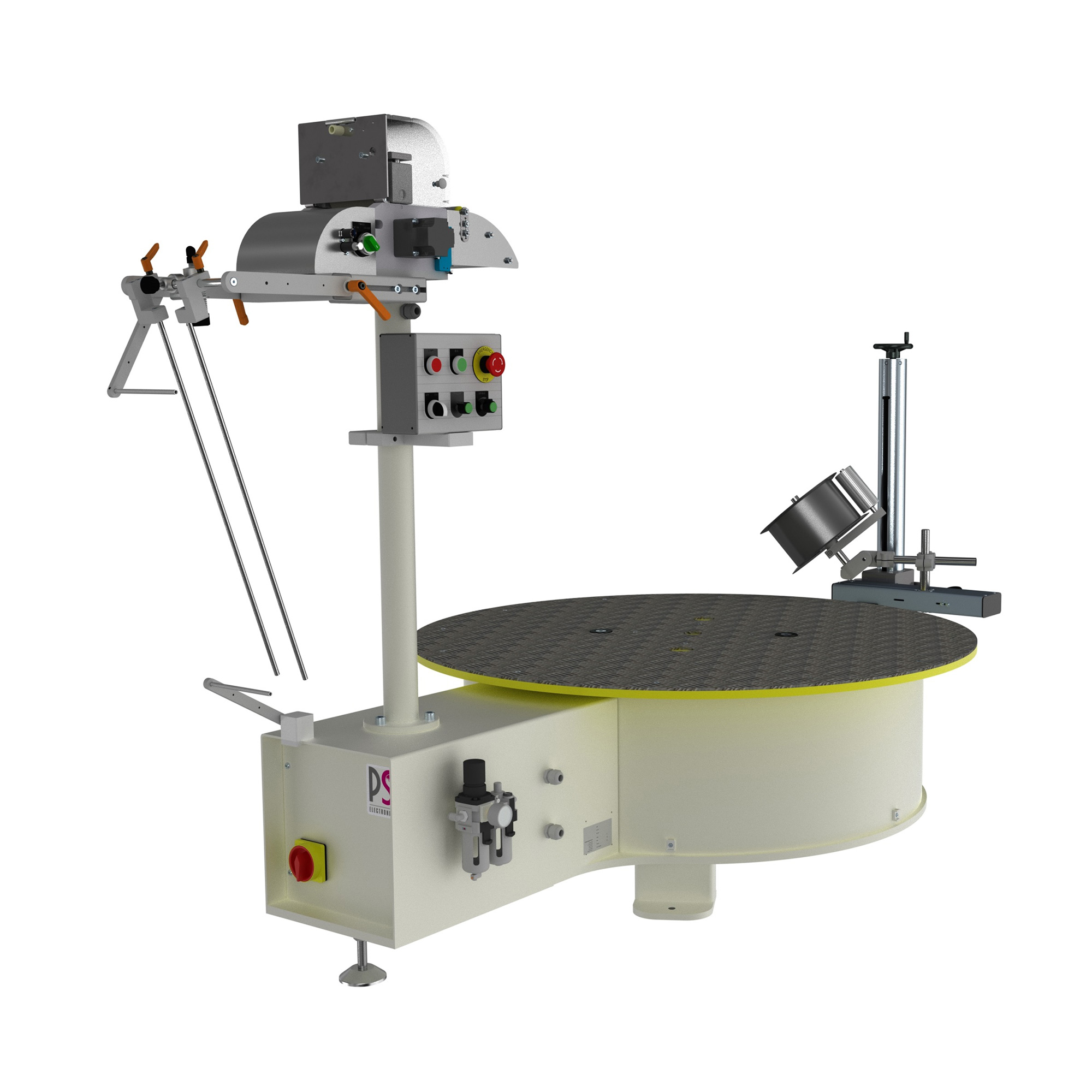

Pallet Decoiler with integrated strip puller and Airmatic tension-controlled dancing arm for multi-coil material
Features
- Robust, large table diameter of 1,200mm
- Short Return Of Investment
- Easy to operate, minimum set-up time
- Minimum set-up time through optimal material/ coil handling
- Clockwise or counterclockwise operation
- Airmatic tension-controlled dancer arm
- Universal angle adjustment for dancer arm roller
- Contactless loop control via IR sensor
- No additional storage area needed for pallets with coils
- With integrated strip puller, torque controlled for multi-coil material
- Splice detection sensor
Technical Brochure
For full specifications, download our technical brochure. Please log in before downloading the brochure. If you do not have an account, you may register here.
Details

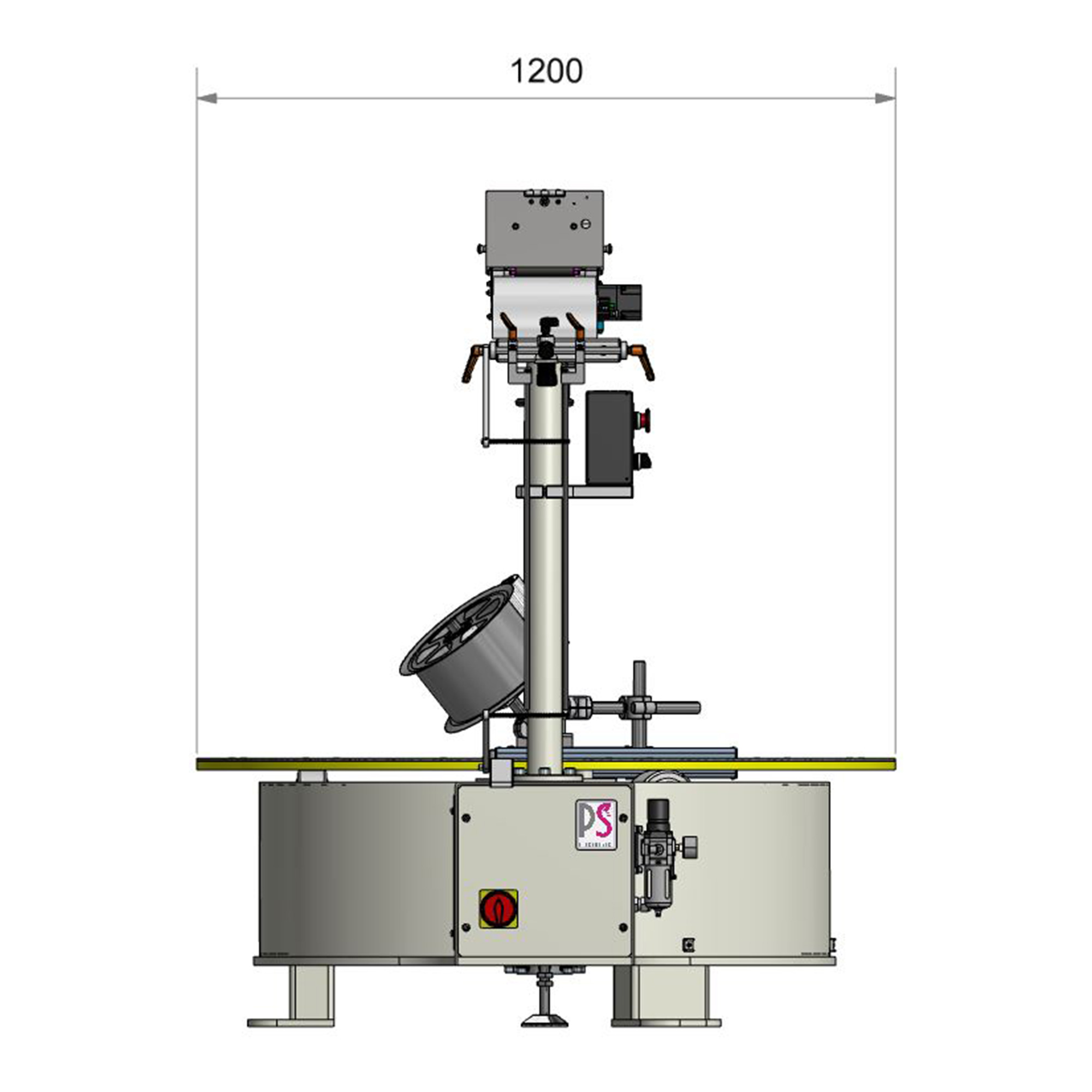

| Table Diameter | 1,200mm |
|---|---|
| Max. Capacity | 2,000kg |
| Max. Strip Width | 50mm |
| Max. Pallet w/coil Height | 650mm |
