Overview

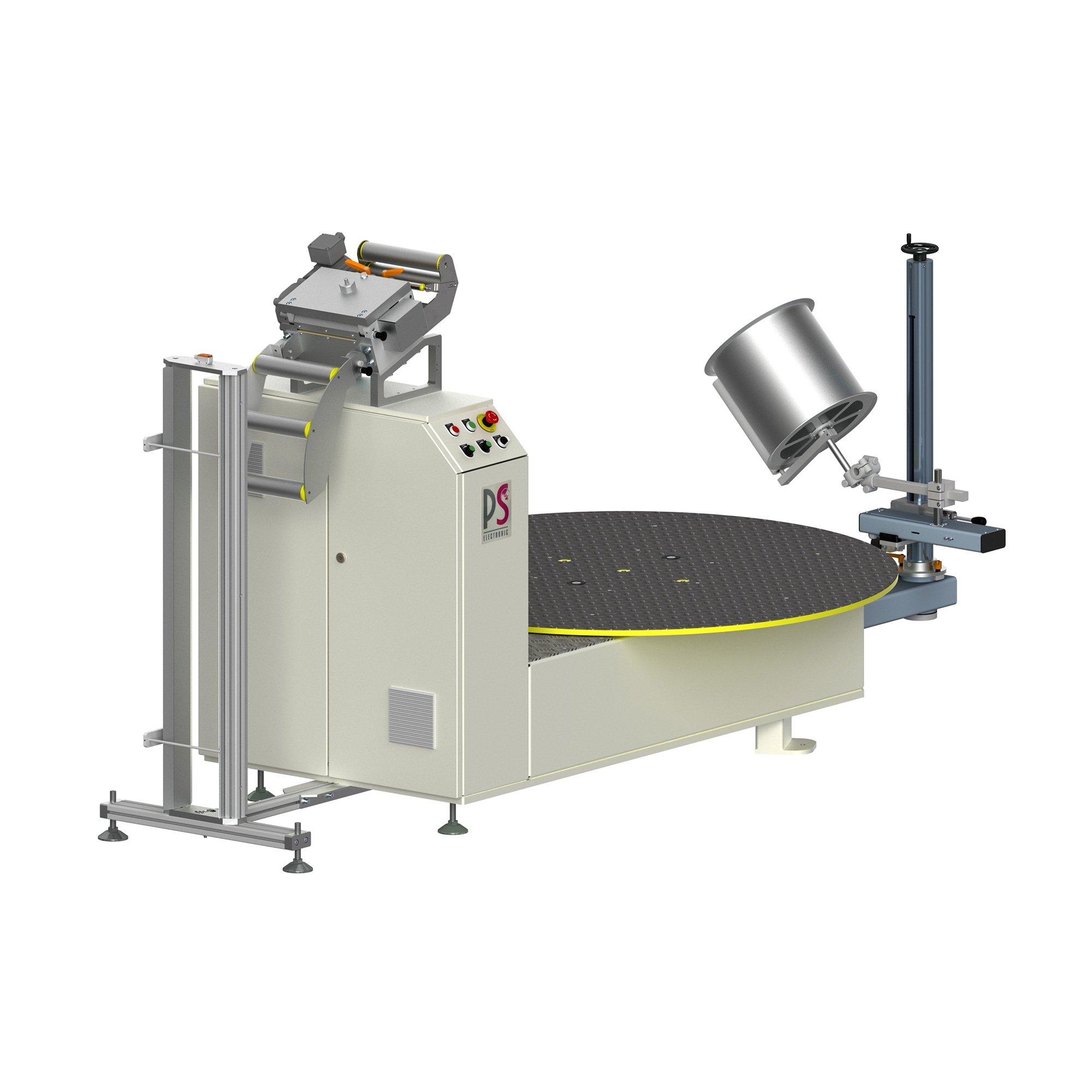

Heavy Duty Pallet Decoiler with Integrated Strip Puller
Features
- Robust, large table diameter of 1,450mm
- Large material width up to 150mm
- Short Return Of Investment
- Easy to operate, minimum set-up time
- Clockwise or counterclockwise operation
- Airmatic tension-controlled dancer arm
- Universal angle adjustment for dancer arm roller
- Contactless loop control via Ultrasonic sensor
- No additional storage area needed for pallets with coils
- With integrated strip puller OR optional material straightener
- Lead screw adjustment module for Ease of Dancer Roller height adjustment
- Splice detection sensor
Technical Brochure
For full specifications, download our technical brochure. Please log in before downloading the brochure. If you do not have an account, you may register here.
Details
| Table Diameter | 1,450mm |
|---|---|
| Max. Capacity | 2,000kg |
| Max. Strip Width | 150mm |
| Max. Pallet w/coil Height | 600mm |
